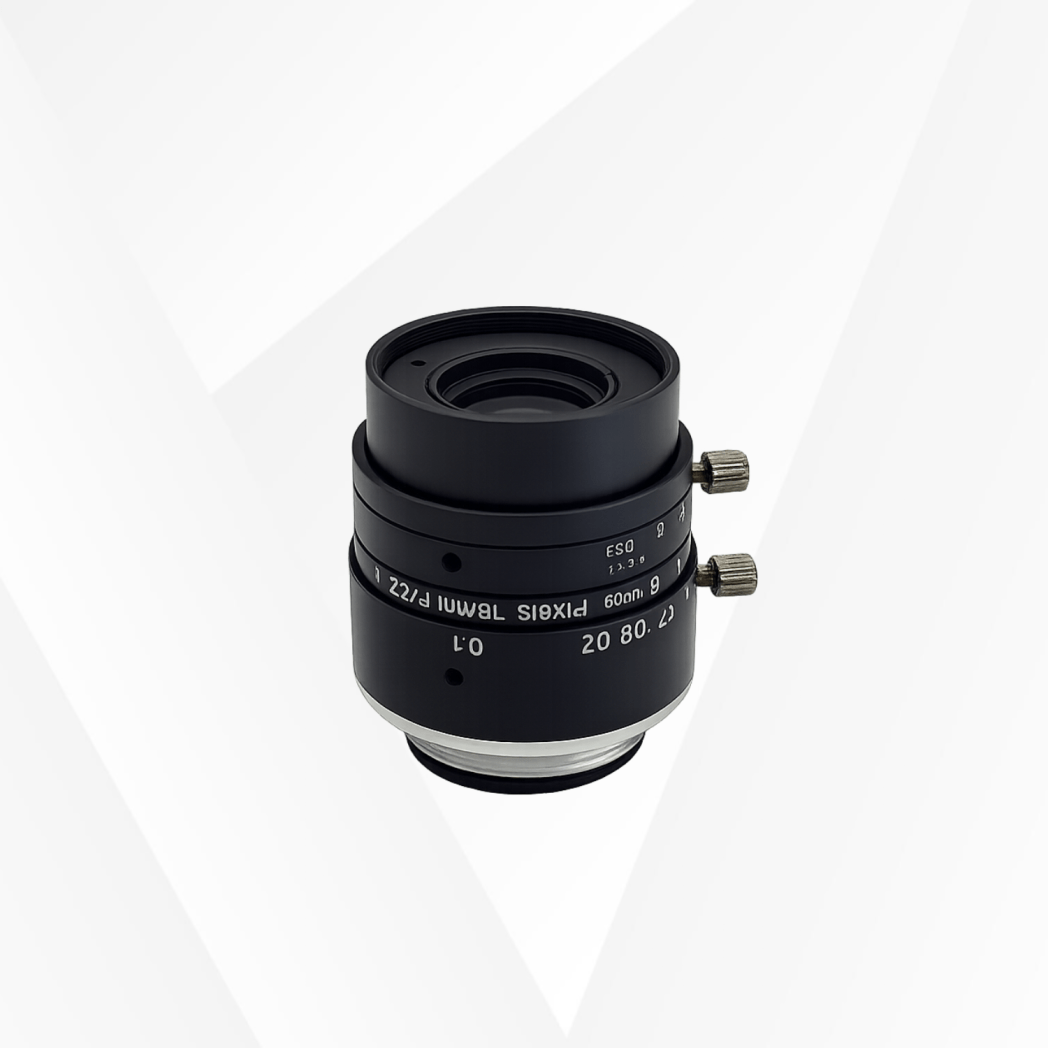

HN-P-1628-6M-C1/1.8

₹14,000

• C Mount	• M27 × 0.5
• 16mm	• 6MP
• 1/1.8″	• F2.8-F16
📥 Datasheet	📥 3D Step

Standard Delivery: 2-3 weeks

🗸 Standard delivery: 2-3 weeks 🗸 In-stock: Same day shipping

🗸 Industrial quality 🗸 Machine vision optimized

Description

DESCRIPTION

The HN-P series offers high-resolution lenses (up to 25 megapixels) designed for cameras up to 1.2″ sensors, delivering exceptionally sharp image quality. With a
low F-number, these lenses provide excellent light sensitivity, making them ideal for applications with limited illumination, short exposure times, or challenging lighting conditions.

This series includes a range of focal lengths to ensure the correct working distance for various inspection setups. Both iris and focus are manually adjustable and can be securely locked with a set screw for stable performance.

This model is well suited for applications that require:

An industrial-grade lens
C-Mount
Supports up to 5 megapixels for sharp imaging
1/1.8″ sensors or smaller
Low F-number enables use in low-light or short exposure environments
Manual iris and focus adjustments for precision setup
Both iris and focus can be locked with set screws for stability during operation

SPECIFICATIONS

Part number	HN-P-1628-6M-C1/1.8
Resolution	6 MP
Sensor size	1/1.8″
Pixel size	2.4 μm
Focal length	16 mm
Total track length	45±0.2 mm
Flange distance	17.52 mm
F/No.	F2.8-F16
Angle of view	32.53° × 25.81° × 17.53° (DxHxV)
TV distortion	±0.1
Basic working distance	300 mm
Focus range	0.1m – ∞
Filter thread	M27 × 0.5
Mount	C-Mount

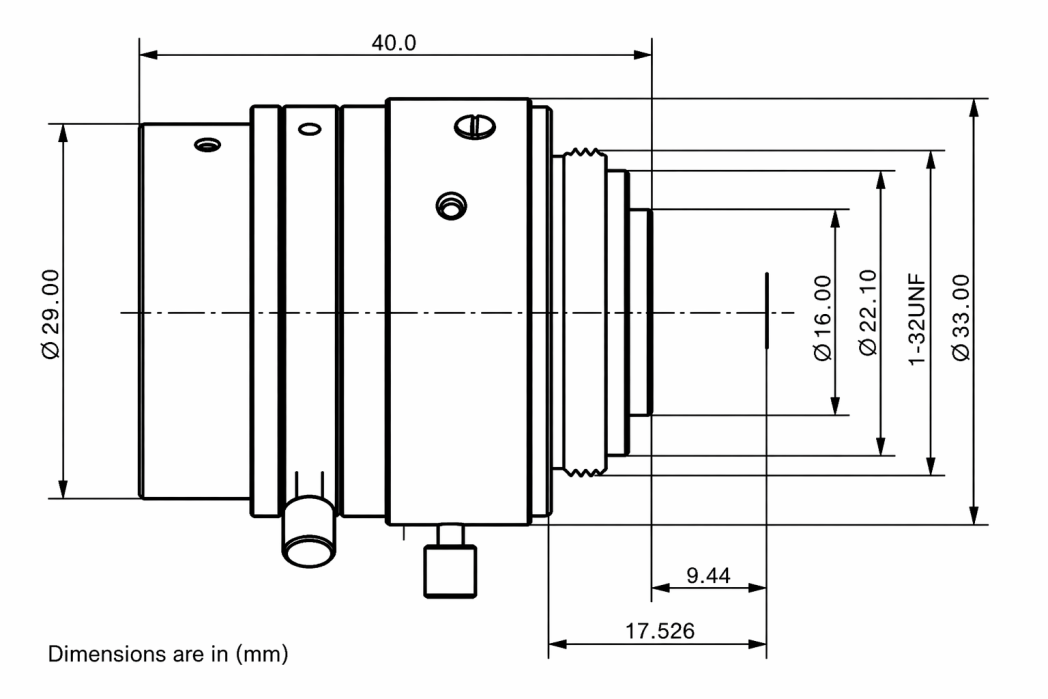

Dimensions	Φ33.0 × 31.9 (w/o thread)
Weight	56 g
