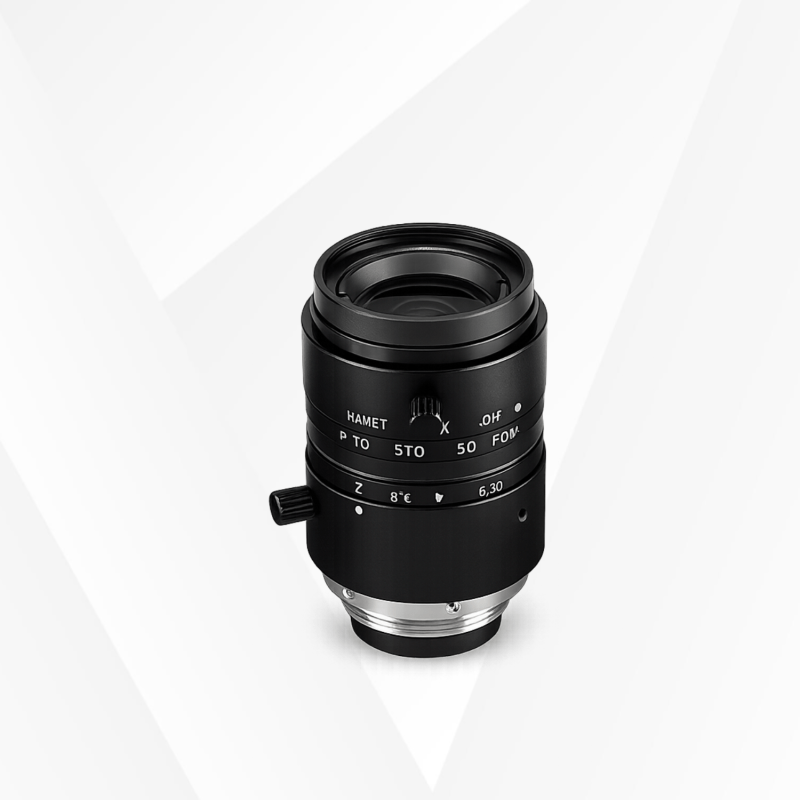

HN-P-0824-10M-C2/3

DESCRIPTION

The HN-P-10M series offers a resolution of up to 2.4μm pixel pitch and is suitable for 2/3″ sensors. The HN-P-10M series consists of 6 models with focal lengths from 8mm to 50mm. The features such as F1.8 large aperture design, ultra-low optical distortion, and miniaturized structure make it fit to almost every application.

This series includes a range of focal lengths to ensure the correct working distance for various inspection setups. Both iris and focus are manually adjustable and can be securely locked with a set screw for stable performance.

This model is well suited for applications that require:

• An industrial-grade lens
• C-Mount
• Supports up to 5 megapixels for sharp imaging
• 2/3” sensors or smaller
• Low F-number enables use in low-light or short exposure environments
• Manual iris and focus adjustments for precision setup
• Both iris and focus can be locked with set screws for stability during operation

SPECIFICATIONS
