MER3-321-91G3M-P-SWIR

₹1,319,000

• C Mount	• 2080×1544
• IMX993	• 1/1.8 INCH
• 91 FPS	• CMOS
• GLOBAL SHUTTER	• MONO

Standard Delivery: 2-3 weeks

🗸 Standard delivery: 2-3 weeks 🗸 In-stock: Same day shipping

🗸 3 years warranty 🗸 Certified by TÜV Rheinland

Description

DESCRIPTION

2.5 GigE Vision Camera IMX993

MER3-321-91G3M-P-SWIR is part of MER3 2.5GigE series. It is an industrial 2.5GigE vision camera, with a 2.5GigE interface. 2.5GigE is the most common interface used for cameras in traditional machine vision applications. The MER3 series contains high resolutions for global shutter sensors.

This model is well suited for applications that require:

An industrial-grade camera
2.5GigE interface
Cable length up to 100m
Cost-effective and straightforward cabling
A single-cable setup when using PoE
Compact dimensions: 29 × 29 × 50.6 mm
Hardware triggering (requires an I/O cable)

PoE (Power over Ethernet)

Power over Ethernet (PoE) for GigE allows both power and data to be transmitted through a single standard Ethernet cable. This simplifies cabling and shortens installation time, especially in setups where no hardware trigger or I/O is needed.

However, when an application requires I/O functionality, it is recommended to power the camera through the I/O connector instead. Compared to I/O power, PoE typically consumes more energy. Since the incoming PoE voltage must be converted to a lower level, the camera generates additional heat, which makes it run warmer.

A PoE-enabled GigE camera is also slightly larger than its non-PoE counterpart because it includes an extra circuit board for extracting and converting power from the Ethernet line. This added hardware also makes the PoE version more expensive than the non-PoE model.

Monochrome SWIR Industrial Camera

Monochrome SWIR GigE cameras are widely used in semiconductor inspection to reveal defects invisible to standard cameras, in moisture detection since water absorbs light around 1450nm, and in material identification, as different materials (e.g., plastics and metals) have unique infrared reflectance properties. For more information, refer to the industrial GigE Vision camera manual.

A Monochrome SWIR Industrial Camera (Visible-SWIR camera) captures light from 400nm to 1700nm using Sony’s IMX993 SWIR image sensor, covering both visible and short-wave infrared (SWIR) spectra. This allows a single camera, such as the MER3-321-91G3M-P-SWIR, to replace the traditional dual setup of visible and SWIR cameras. The result is reduced cost, faster processing, and an expanded detection range, making it a versatile solution for various industrial applications.

MTBF, Warranty & Product Life Cycle

Daheng Imaging produce yearly more than 1,00,000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is at least available for 7 years. Most cameras have even a much longer product life cycle.

Datasheet | User manual | Software & SDK | 3D Step

SPECIFICATIONS

Part number	MER3-321-91G3M-P-SWIR
Interface	2.5 GigE Vision
Resolution	2080×1544
Frame rate	91 fps
Pixel size	3.45 μm
Color/Mono	Mono SWIR
Sensor type	IMX993
Sensor size	1/1.8″
Shutter Type	Global Shutter
Shutter time	13μs ~ 1s
ADC Bit Depth	12 bit
Pixel bit depth	8-bit, 12-bit
Digital Gain	0dB ~ 24dB
Pixel data format	Mono8 / Mono10 / Mono12 Packed
Synchronization	HW & SW Trigger
I/O	1 input with opto-isolated, 2 programmable GPIOs
Operating temp.	0°C ~ +50°C
Humidity	10% ~ 80%
Mount	C

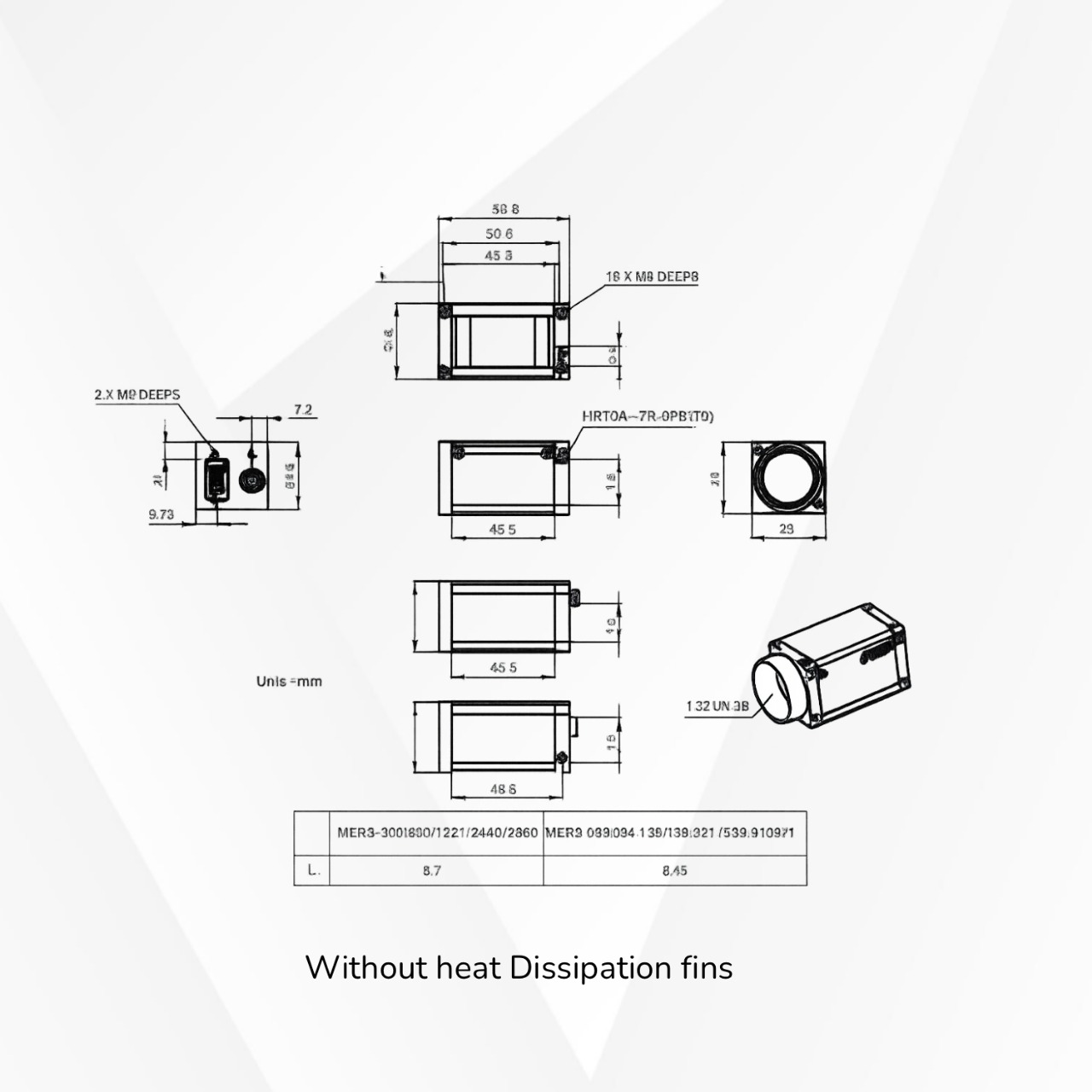

Dimensions	29x29x50.6mm
SDK	Windows / Linux / Android
Power	< 5 W @ 12V / PoE
Weight	67g
Compliance	3rd-party software such as HALCON, VisionPro and LabVIEW
Megapixel	3 MP
Old Part #	MER3-321-91G3M-P-SWIR
