MER2-507-23GM-P-NIR

₹17,400

• C Mount	• 2592×1944
• ARO522	• 1/2.5 INCH
• 23 FPS	• CMOS
• ROLLING SHUTTER	• MONO NIR
• POE

Standard Delivery: 2-3 weeks

🗸 Standard delivery: 2-3 weeks 🗸 In-stock: Same day shipping

🗸 3 years warranty 🗸 Certified by TÜV Rheinland

Description

DESCRIPTION

GigE Vision Camera On Semi ARO522

The Mercury GigE camera series is a compact industrial vision camera featuring a GigE interface, the most widely used connection in conventional machine vision systems. It is offered in both PoE (Power over Ethernet) and non-PoE variants.

This model is well suited for applications that require:

An industrial-grade camera
GigE interface
Cable length up to 100m
Cost-effective and straightforward cabling
A single-cable setup when using PoE
Compact dimensions: 29 × 29 × 29 mm (non-PoE) or 29 × 29 × 38 mm (PoE)
Hardware triggering (requires an I/O cable)

I/O Port for Hardware Trigger / Strobe Control

The camera features an 8-pin HR25 Hirose connector, a widely used standard in the industrial machine vision market.
Input function: Can be used as a hardware trigger to control image capture.
Output function: Can trigger external devices such as industrial machine vision lights and turn on/off rejection signal.
Two GPIOs (General Purpose I/O): Fully programmable through our SDK for custom applications.
Documentation: Electrical diagrams for the I/O connector are included in the manual.

NIR

NIR cameras use monochrome sensors designed specifically for the Near-Infrared (NIR) range, typically between 800–1000 nm. Standard IR LEDs usually operate at 850 nm or 930 nm.
Compared to conventional monochrome cameras, NIR sensors have deeper photon-sensitive regions within each pixel, allowing them to capture higher wavelength infrared light more effectively.
Because of this advanced sensitivity, NIR cameras are more expensive than regular monochrome models. They are particularly well-suited for low-light environments and are widely used in intelligent transportation systems (ITS), medical imaging, and other infrared imaging applications.

PoE (Power over Ethernet)

Power over Ethernet (PoE) for GigE allows both power and data to be transmitted through a single standard Ethernet cable. This simplifies cabling and shortens installation time, especially in setups where no hardware trigger or I/O is needed.

However, when an application requires I/O functionality, it is recommended to power the camera through the I/O connector instead. Compared to I/O power, PoE typically consumes more energy. Since the incoming PoE voltage must be converted to a lower level, the camera generates additional heat, which makes it run warmer.

A PoE-enabled GigE camera is also slightly larger than its non-PoE counterpart because it includes an extra circuit board for extracting and converting power from the Ethernet line. This added hardware also makes the PoE version more expensive than the non-PoE model.

Industrial Monochrome Camera

A monochrome, or black-and-white, camera is designed to capture images without color information, making it highly effective in industrial and scientific applications. Unlike color cameras, which divide incoming light into multiple channels, monochrome cameras use the full sensor for brightness detection. This results in greater light sensitivity, sharper images, and reduced data volume, which significantly improves the speed and efficiency of image processing.

By pairing monochrome cameras with the right lighting wavelengths and lens filters, specific product characteristics can be emphasized, creating high-contrast, high-resolution images. This makes them ideal for tasks such as inspection, measurement, and machine vision, where precision and detail are critical. Their ability to deliver consistent performance in controlled environments has established monochrome cameras as a reliable choice for industrial imaging.

MTBF, Warranty & Product Life Cycle

Daheng Imaging produce yearly more than 1,00,000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is at least available for 7 years. Most cameras have even a much longer product life cycle.

Datasheet | User manual | Software & SDK | 3D Step

SPECIFICATIONS

Part number	MER2-507-23GM-P-NIR
Interface	GigE Vision
Resolution	2592×1944
Frame rate	23 fps
Pixel size	2.2 μm
Color/Mono	Monochrome NIR
Sensor type	ARO522
Sensor size	1/2.5″
Shutter Type	Rolling Shutter
Shutter time	52μs ~ 1s
ADC Bit Depth	12-bit
Pixel bit depth	8-bit, 12-bit
Digital Gain	0dB ~ 24dB
Pixel data format	Mono8 / Mono12
Synchronization	HW & SW Trigger
I/O	1 Input + 1 Output + 2 GPIO
Operating temp.	0°C ~ 45°C
Humidity	10% ~ 80%
Mount	C

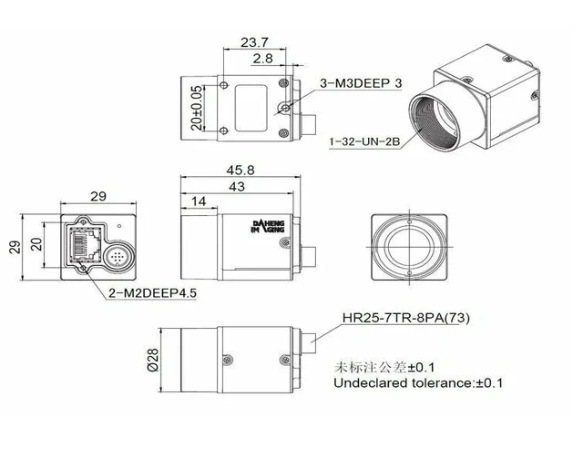

Dimensions	29x29x40.3mm
SDK	Windows / Linux / Android
Power	<3W@24V <3.75W@PoE
Weight	75g
Compliance	RoHS, CE, FCC, GigE Vision, GenICam
Megapixel	5 MP
Old Part #	MER2-507-23GM-P-NIR
