MARS-3250-12U3M

₹308,700

• M42 & F Mount	• 6576×4940
• XGS32000	• 1.7 INCH
• 12 FPS	• CMOS
• GLOBAL SHUTTER	• MONO

Standard Delivery: 2-3 weeks

308700308700

Addons:

Select an option

F-Mount

₹1,500

Select an option

USB3 cable (not included)

1-meter USB3 cable screw lock

3-meter USB3 cable screw lock

₹1,500

4.6-meter USB3 cable screw lock

₹1,800

10-meter USB3 cable screw lock

₹4,500

Select an option

I/O cable (not Included)

1.5-meter I/O cable Hirose-open end for MARS

₹1,200

3-meter I/O cable Hirose-open end for MARS

₹1,500

5-meter I/O cable Hirose-open end for MARS

₹1,800

Select an option

USB3 PCIe card not included

PCIe1x - 4x USB3.0 - Single bus

Adapter PCIe4x - 4x USB3.0 - quad bus

₹1,500

Select an option

Tripod mounting plate (not Included)

Tripod mounting plate 24x20-ALU

Addons Price: ₹0

Total Price: ₹308,700

🗸 Standard delivery: 2-3 weeks 🗸 In-stock: Same day shipping

🗸 3 years warranty 🗸 Certified by TÜV Rheinland

Description

DESCRIPTION

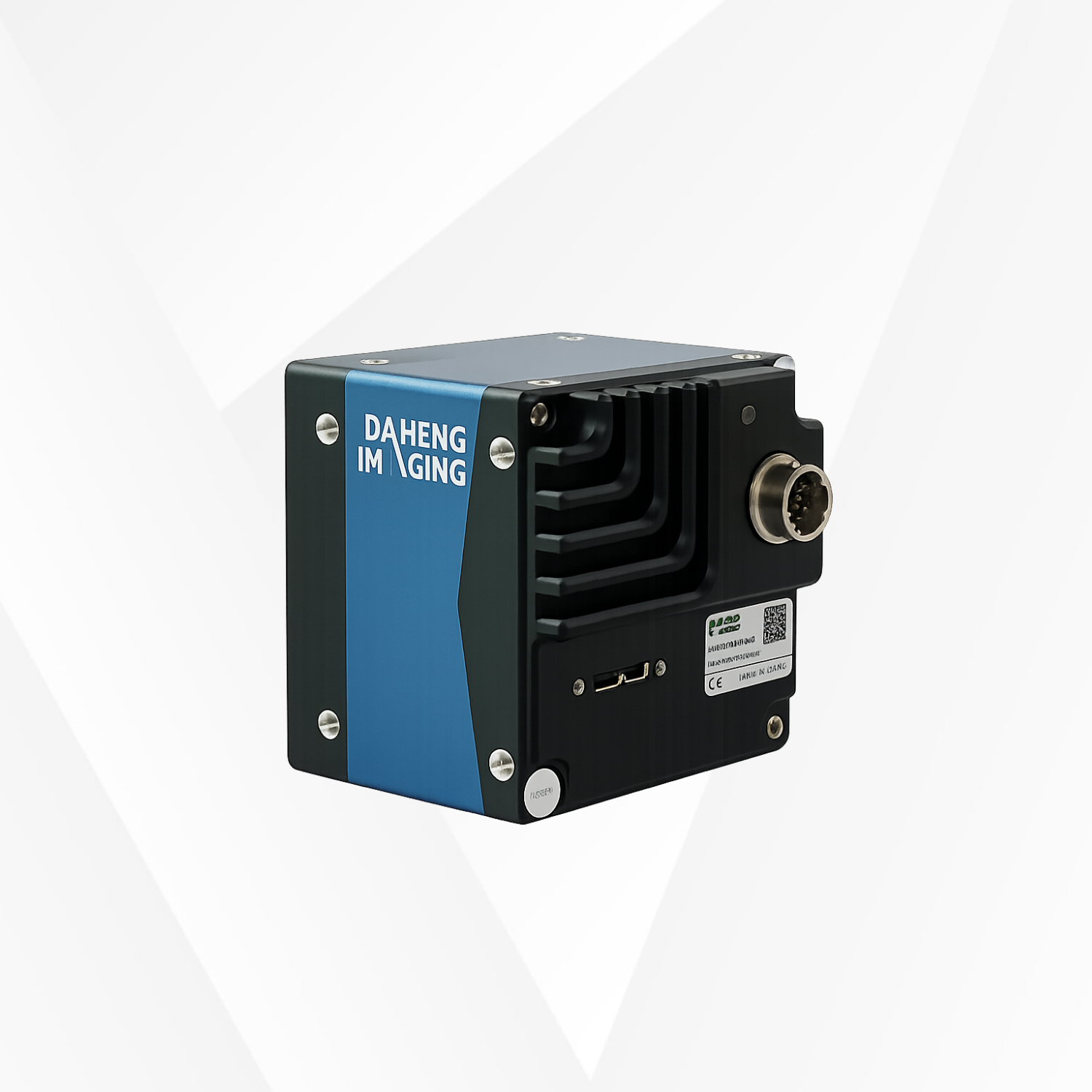

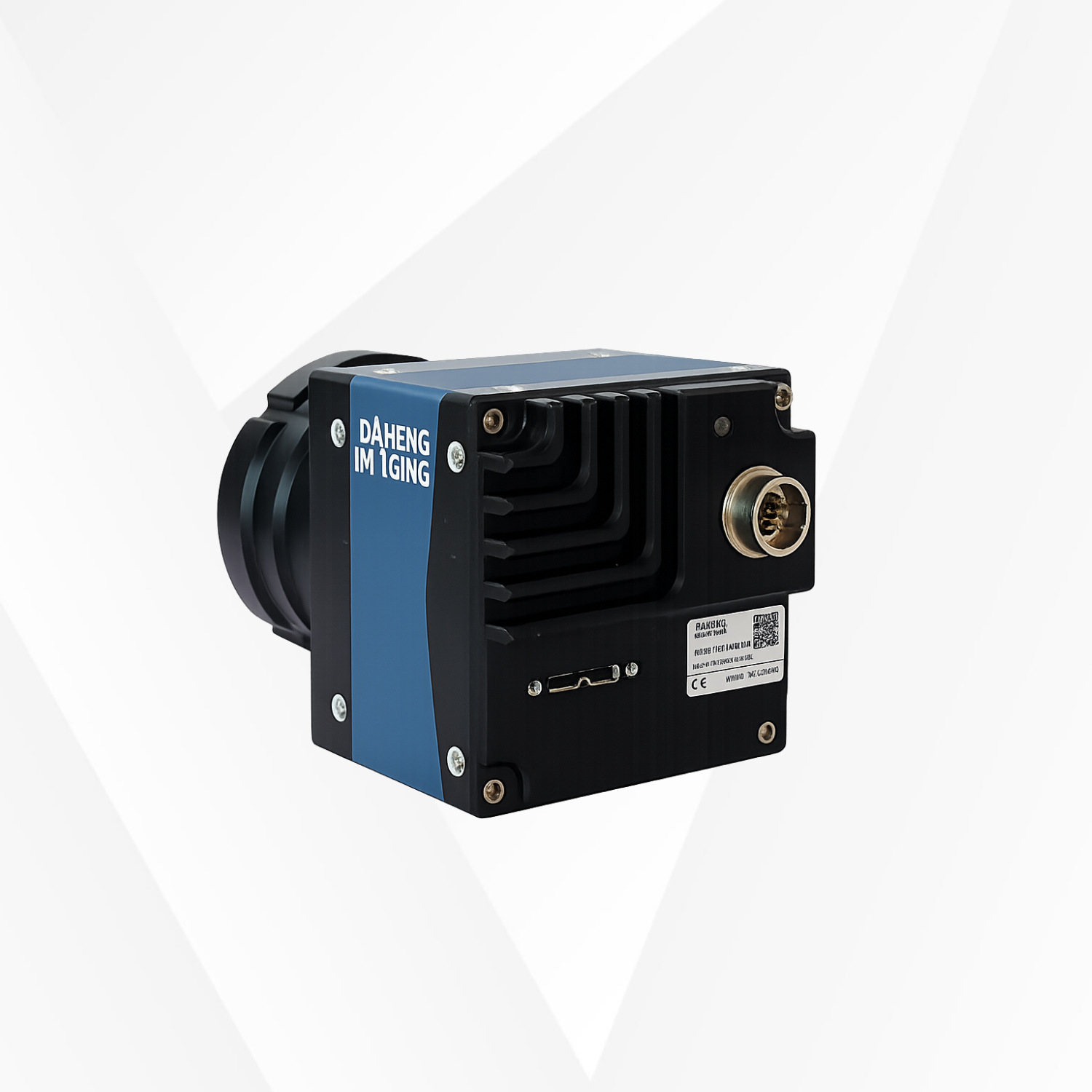

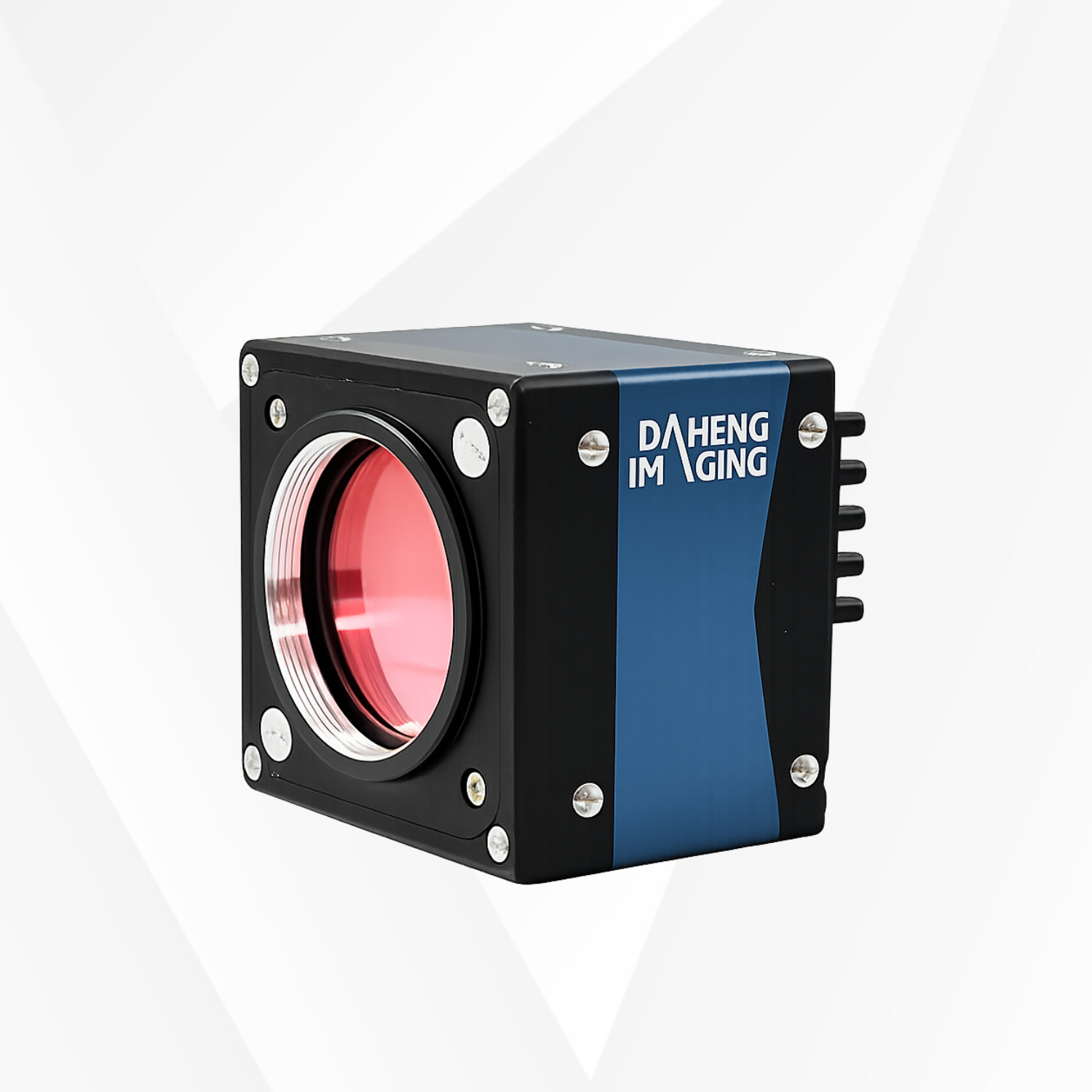

USB3 Vision Camera OnSemi XGS32000

The Mars USB3 Series is an industrial-grade imaging camera equipped with high-resolution global shutter sensors. Designed for versatility and performance, it is widely used in machine vision, industrial automation, ANPR, medical imaging, and research & development applications. The USB3 interface offers high-speed data transfer and cost efficiency, making it an ideal choice for a wide range of imaging solutions.

This model is well suited for applications that require:

An industrial imaging camera
Captures moving objects in high resolution with excellent image clarity
Compatible with computers (x86) and embedded platforms (ARM V7 & ARM V8)
Requires an I/O cable for power and control due to high sensor power consumption

Monochrome Imaging Camera

A monochrome imaging camera, also known as a black-and-white imaging camera, offers distinct advantages across various industrial applications. While color cameras dominate markets such as security and telecommunications, the industrial sector leverages the superior performance characteristics of monochrome systems.

Monochrome cameras deliver high light sensitivity, enhanced image sharpness, and reduced data volume compared to color cameras, making them ideal for image processing tasks. By selecting the appropriate illumination wavelength and lens filter, users can optimize contrast and fully utilize the optical properties of the target object.

As a result, monochrome imaging cameras produce high-contrast, detailed images, ensuring precise and reliable performance in demanding vision applications.

ADVANCED IMAGING CAMERA FEATURES

Programmable ROI and partial scan for higher frame rates
Adjustable and auto gain, exposure, and white balance (color models only)
Multiple acquisition modes: Single, Continuous, Software Trigger, External Trigger
Trigger modes: Frame Start / Frame Burst Start
Supports LUTs, decimation, binning, image reverse, and digital shift
Color correction and adjustable gamma (for color models)
Exposure delay to reduce strobe delay effects
16KB user data storage
GenICam™ and USB3 Vision® compatible
Works with Zebra Aurora Vision Studio and other 3rd-party software
Optimized SDK and software for low CPU usage
Complies with CE, RoHS, GenICam, and USB3 Vision standards
Ideal for high-performance image processing applications

MTBF, Warranty & Product Life Cycle

Daheng Imaging produce yearly more than 1,00,000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is at least available for 7 years. Most cameras have even a much longer product life cycle.

Datasheet | User manual | Software & SDK | 3D Step

SPECIFICATIONS

Part number	MARS-3250-12U3M
Interface	USB3 Vision
Resolution	6576×4940
Frame rate	12 fps
Pixel size	3.2 μm
Color/Mono	Mono
Sensor type	XGS32000
Sensor size	1.7″
Shutter Type	Global Shutter
Shutter time	162μs ~ 1s
ADC Bit Depth	12bit
Pixel bit depth	8-bit, 12-bit
Digital Gain	0dB~24dB
Pixel data format	Mono8 / Mono12
Synchronization	HW & SW Trigger
I/O	1 Input + 1 Output + 2 GPIO
Operating temp.	0°C ~ 45°C
Humidity	10% ~ 80%
Mount	M42 & F

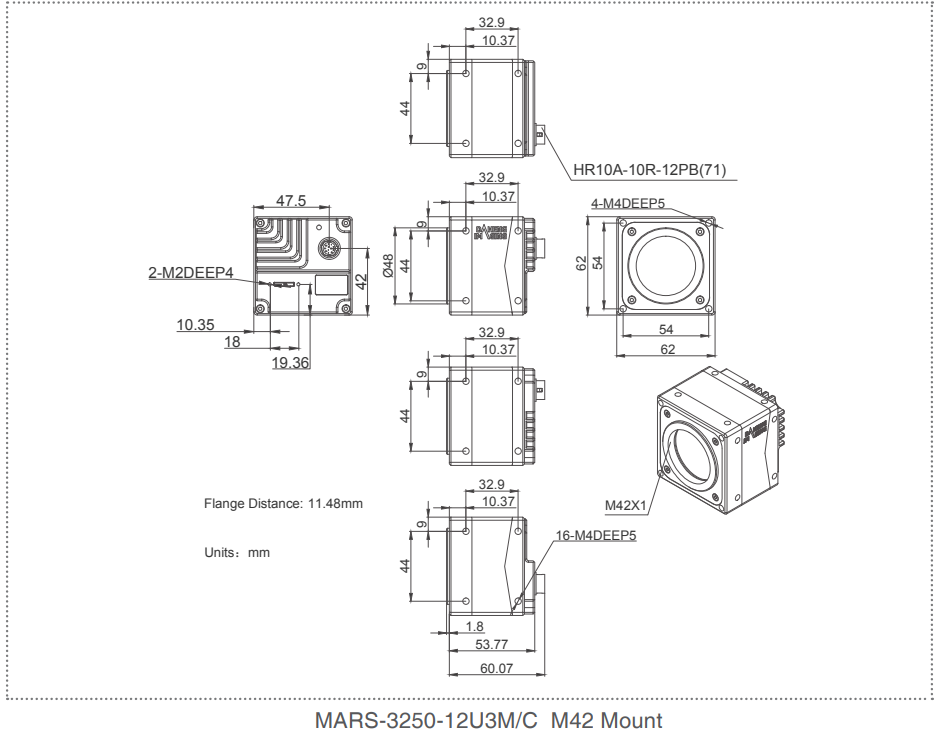

Dimensions	62x62x53.77mm
SDK	Windows / Linux / Android
Power	<5.6W @ 24VDC
Weight	308g
Compliance	RoHS, CE, FCC, 5GigE Vision, GenICam
Megapixel	32 MP
Old Part #	MARS-3250-12U3M
