MER2-2000-19U3C-W90

₹31,300

• C Mount	• 5496×3672
• IMX183	• 1 INCH
• 19 FPS	• RIGHT ANGLE (90)
• ROLLING SHUTTER	• COLOR

Available on backorder (Delivery: 2–3 weeks)

🗸 Standard delivery: 2-3 weeks 🗸 In-stock: Same day shipping

🗸 3 years warranty 🗸 Certified by TÜV Rheinland

Description

DESCRIPTION

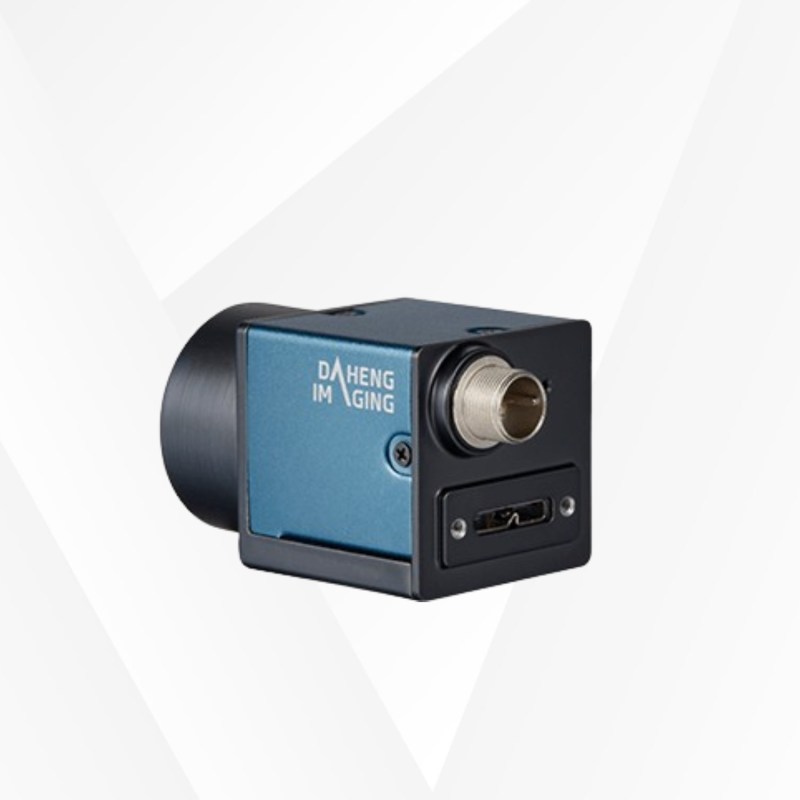

Industrial USB 3.0 Vision camera with 90 degree head IMX183

The Mercury2 USB 3.0 camera is an industrial-grade vision camera featuring a USB 3.0 interface and a 90-degree right-angle camera head. The USB 3.0 connection provides the high bandwidth required for high-resolution and high-speed image acquisition, making the camera ideal for demanding vision applications.

This interface is fully compatible with embedded platforms—such as the Raspberry Pi 4 or higher and the NVIDIA family of processors—as well as standard x86 computers, ensuring broad platform flexibility.
The Mercury2 USB 3.0 camera is an excellent choice if your application requires:

A reliable industrial vision camera
A maximum cable length of 4.5 meters (up to 10 meters when using an optical USB 3.0 cable)

Single-cable connectivity for both power and data
Compact installation, enabled by the 90-degree right-angle head

Compatibility with x86 computers and ARMv7 / ARMv8 embedded architectures
Hardware triggering capability (triggering requires an additional I/O cable)

Industrial Color camera

Color cameras use a Bayer pattern to create full-color images. Each pixel’s color value is calculated together with its neighbors, which makes the image less sharp compared to a monochrome camera. Because of the RGB filter, each pixel captures up to 66% fewer photons under white light, making color cameras less sensitive to light. This can be balanced by increasing light, gain, or exposure time, or by choosing a more light-sensitive sensor or lens.

Industrial color cameras, however, are designed with larger, more light-sensitive pixels than standard security cameras or webcams — giving you excellent image quality with rich detail and true-to-life color.

I/O Port for Hardware Trigger, Strobe Control, and PLC Communication

The I/O connector on the USB camera uses an 8-pin HR25 Hirose interface, a widely accepted standard in the industrial machine vision market. The camera supports an input for external hardware triggering, while its output can be used to activate a light source—such as an industrial vision strobe—for precise illumination control. In addition, the camera features two General Purpose Input/Output (GPIO) ports that can be fully programmed via our SDK to support application-specific automation requirements. Detailed electrical diagrams for the I/O connector are available in the user manual, and further guidance is provided in our article on hardware triggering multiple industrial cameras.

MTBF, Warranty & Product Life Cycle

Daheng Imaging produce yearly more than 1,00,000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is at least available for 7 years. Most cameras have even a much longer product life cycle.

Datasheet | User manual | Software & SDK | 3D Step

SPECIFICATIONS

Part number	MER2-2000-19U3C-W90
Interface	USB3 Vision
Resolution	5496×3672
Frame rate	19 fps
Pixel size	2.4 μm
Color/Mono	Color
Sensor type	IMX183
Sensor size	1″
Shutter Type	Rolling Shutter
Shutter time	12us~1s
ADC Bit Depth	12 bit,
Pixel bit depth	8 bit, 12 bit
Digital Gain	0db~24db
Pixel data format	Bayer RG8 / Bayer RG12
Synchronization	HW & SW Trigger
I/O	1 Input + 1 Output + 2 GPIO
Operating temp.	0°C~45°C
Humidity	10% ~ 80%
Mount	C
Dimensions	29x29x58.8mm
SDK	Windows / Linux / Android
Power	<2.7W@5V
Weight	78g
Compliance	CE, RoHS, FCC,USB3.0 Vision®, GenICam®
Megapixel	20 MP
Old Part #	MER2-2000-19U3C-W90
