MARS-1231-46G5C-P

₹174,400

• C Mount	• 4096×3000
• IMX253	• 1.1 INCH
• 47 FPS	• CMOS
• GLOBAL SHUTTER	• COLOR

Standard Delivery: 2-3 weeks

🗸 Standard delivery: 2-3 weeks 🗸 In-stock: Same day shipping

🗸 3 years warranty 🗸 Certified by TÜV Rheinland

Description

DESCRIPTION

5GigE Vision Camera IMX253

The Mars 5GigE Series is an industrial-grade vision camera equipped with a 5GigE interface, making it ideal for high-resolution and high-speed imaging applications that require cable lengths exceeding 5 meters. The Mars Series exclusively features high-resolution global shutter sensors, ensuring superior image quality and precise capture of fast-moving objects.
This model is well-suited for applications that demand high performance, reliability, and extended transmission distances.

This model is well suited for applications that require:

An industrial camera
5GigE interface
Cable length up to 100m
Inexpensive and easy installation of cables
A single-cable setup
Compact dimensions: 62 × 62 × 53.4 mm
Utilizes standard 1000 Mbit Ethernet cabling (Cat6 or higher)

Industrial Color camera

Color cameras use a Bayer pattern to create full-color images. Each pixel’s color value is calculated together with its neighbors, which makes the image less sharp compared to a monochrome camera. Because of the RGB filter, each pixel captures up to 66% fewer photons under white light, making color cameras less sensitive to light. This can be balanced by increasing light, gain, or exposure time, or by choosing a more light-sensitive sensor or lens.

Industrial color cameras, however, are designed with larger, more light-sensitive pixels than standard security cameras or webcams — giving you excellent image quality with rich detail and true-to-life color.

PoE (Power over Ethernet)

Power over Ethernet (PoE) for GigE allows both power and data to be transmitted through a single standard Ethernet cable. This simplifies cabling and shortens installation time, especially in setups where no hardware trigger or I/O is needed.

However, when an application requires I/O functionality, it is recommended to power the camera through the I/O connector instead. Compared to I/O power, PoE typically consumes more energy. Since the incoming PoE voltage must be converted to a lower level, the camera generates additional heat, which makes it run warmer.

A PoE-enabled GigE camera is also slightly larger than its non-PoE counterpart because it includes an extra circuit board for extracting and converting power from the Ethernet line. This added hardware also makes the PoE version more expensive than the non-PoE model.

MTBF, Warranty & Product Life Cycle

Daheng Imaging produce yearly more than 1,00,000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3 year warranty. After market introduction, every camera model is at least available for 7 years. Most cameras have even a much longer product life cycle.

Datasheet | User manual | Software & SDK | 3D Step

SPECIFICATIONS

Part number	MARS-1231-46G5C-P
Interface	5 GigE Vision
Resolution	4096×3000
Frame rate	47 fps
Pixel size	3.45 μm
Color/Mono	Color
Sensor type	IMX253
Sensor size	1/1″
Shutter Type	Global Shutter
Shutter time	21μs ~ 1s
ADC Bit Depth	TBD
Pixel bit depth	8-bit, 10-bit
Digital Gain	TBD
Pixel data format	TBD
Synchronization	HW & SW Trigger
I/O	1 Input + 1 Output + 2 GPIO
Operating temp.	0°C ~ 45°C
Humidity	10% ~ 80%
Mount	C

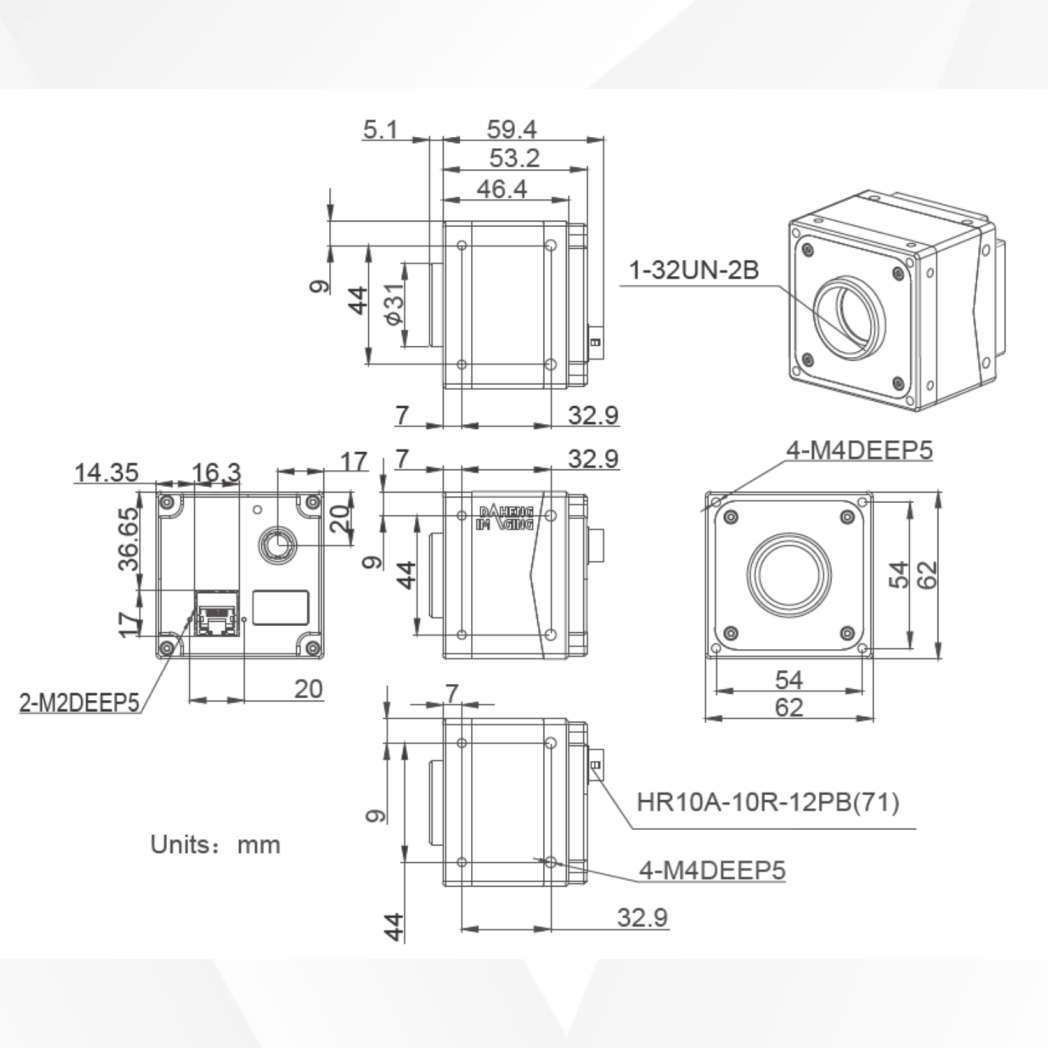

Dimensions	62x62x53.2mm
SDK	Windows / Linux / Android
Power	<9W@12V <10.5W@PoE
Weight	305g
Compliance	RoHS, CE, FCC, 5GigE Vision, GenICam
Megapixel	12 MP
Old Part #	MARS-1231-46G5C-P
